Enzyme Reactor VP Link model

The Enzyme Reactor model demonstrates various control loops that need to work in a coordinated fashion. This is a model of an industrial bioreactor used to produce enzymes. The enzymes are produced by laboratory organisms grown in a continuous fermenter. There are two main control issues;

  1. Maintain the sterility of the feed using a pasteurization loop. This introduces deadtime to the temperature controller. This is complicated by the fact that there is a time vs. temperature relationship that must be maintained in the pasteurization loop.
  2. Maintain the optimal concentration of organisms in the reactor. This is not measured directly but can be inferred from other process measurements including the production rate of enzymes.

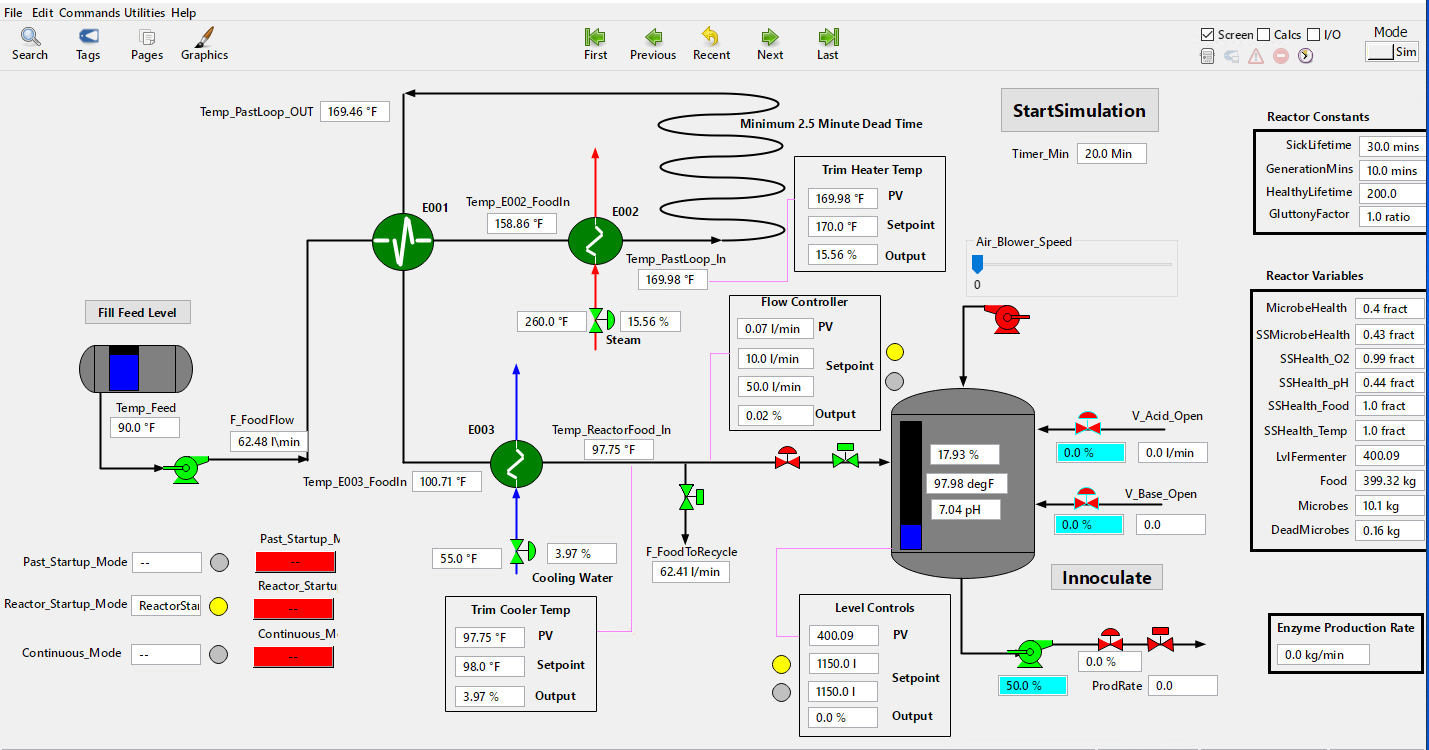

The process is illustrated below. The challenge is to build a brain that maintains the pastuerization of the feed as well as the optimum concentration of microbes in the reactor for maximum production. Within this problem there are effectively three ‘phases’ of the reactor control that need treated differently, pasteurisation startup, reactor startup and continuous enzyme production.

Read the supplied process description for more information about how the process works.

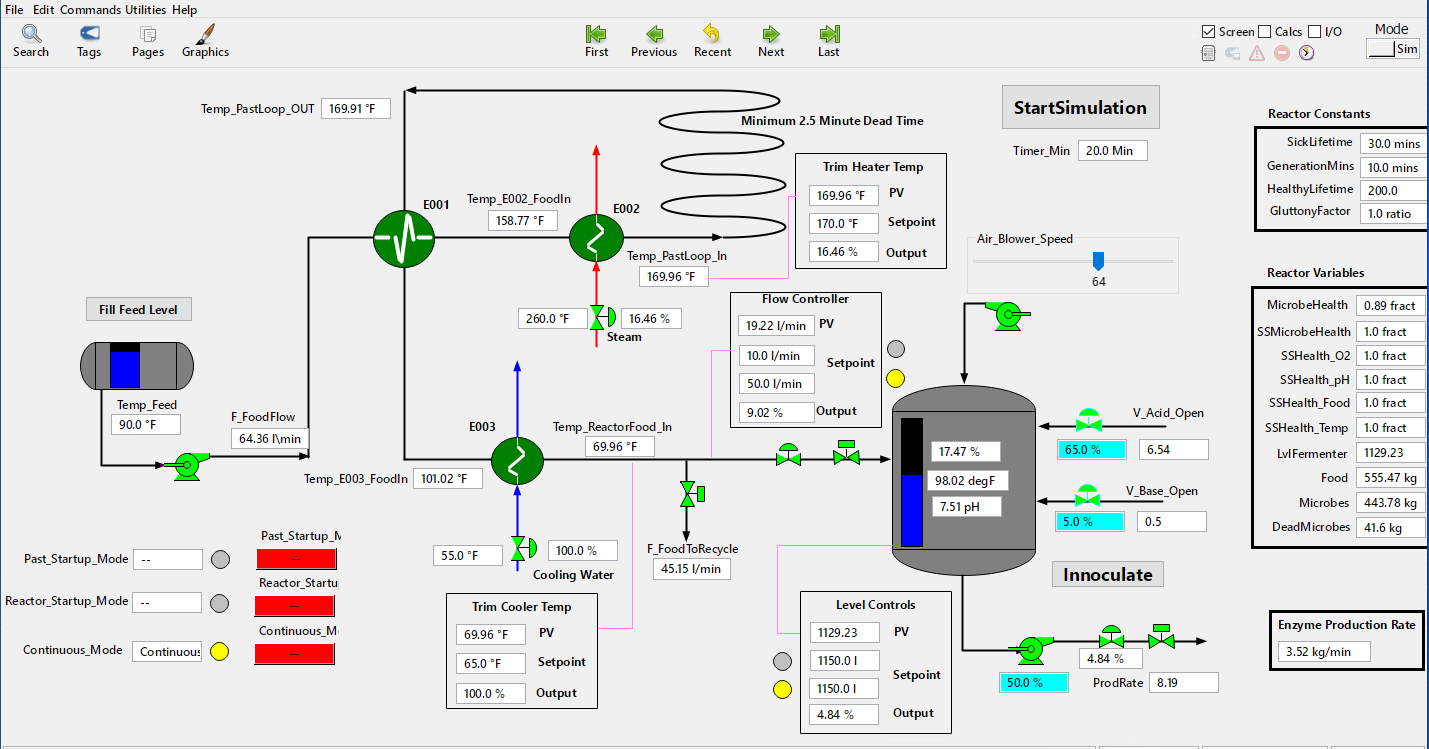

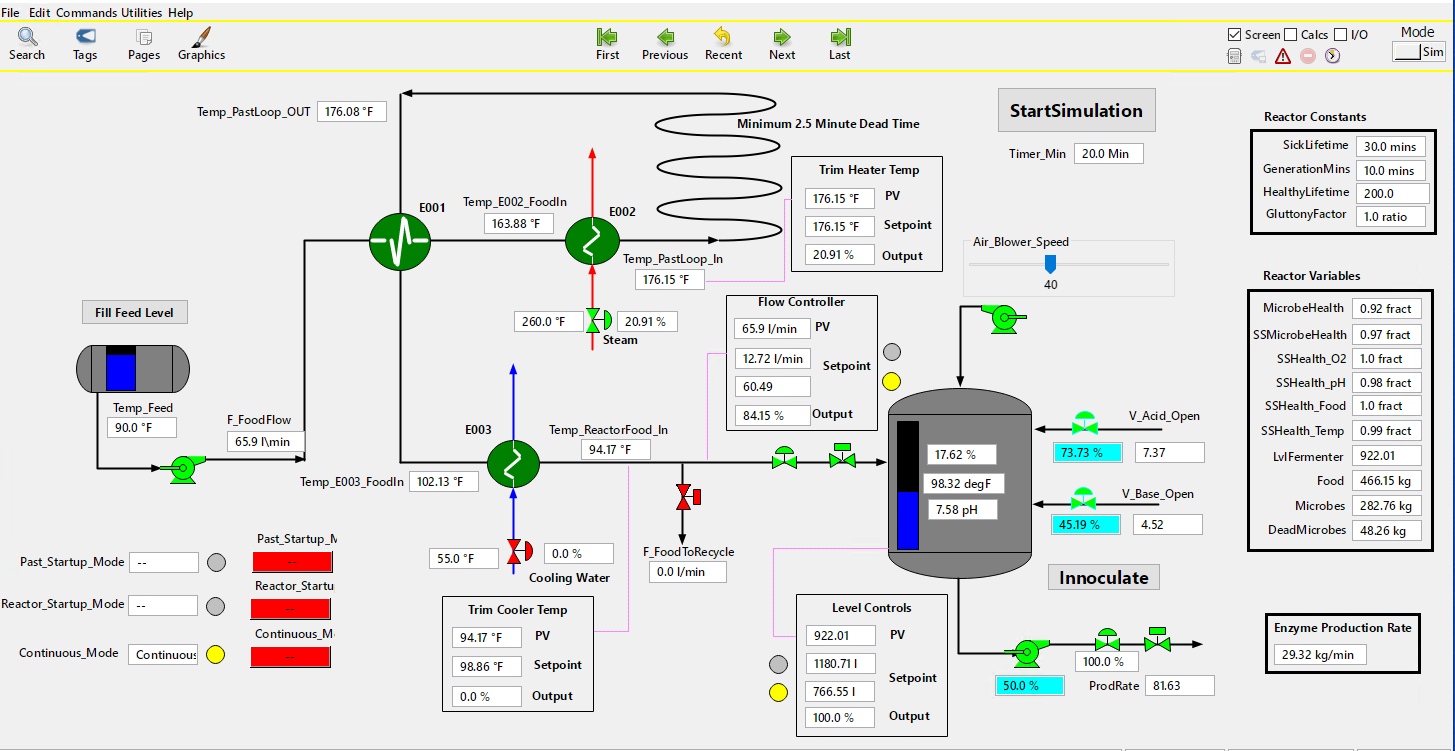

The image below shows the enzyme reactor working at close to optimial conditions. Enzyme Reactor Optimal

Creating a simulator package

Use the supplied VP Link loadable to create your Bonsai Simulator.
To do this, open https://preview.bons.ai/ in the web browser and open your workspace. To add the simulator, click the Add sim button located on the left pane. Select VP Link as the process simulator, drag and drop the QuadTank_sim.zip and type in the name to the simulator (check for duplicate names). Click on Create simulator; a simulator to train the Bonsai brain will be created in the workspace. Once the simulator is created, user needs to select the simulator, click on Create Brain button and and type in the name of the brain (check for duplicate names). An untrained brain will be created. User needs to copy paste the code from inkling file inkling file, update the simulator name in the inkling code and train the brain.
You must ensure that the package name given (e.g. “EnzymeReactor”)is correctly reflected in the package statement in the inkling file

simulator Simulator(action: SimAction, config: SimConfig): SimState {
    # Automatically launch the simulator with this
    # registered package name.
    package "EnzymeReactor"
}

State Tags

Action Tags

SimConfig

Initial Conditions Files

Things to consider

Learning with the Enzyme Reactor Sample inkling

The EnzymeReactor_Sample.ink file is a place to start to train a brain on a part of this process. The Sample is an example of a multi-concept brain that uses different concepts and rewards for different phases of the reactor control. Create a simulator using the VP Link simulator and the sample loadable file in this directory. If you are not sure how to do this, go back and run through the SimpleTank example.

After you get your sim created, paste the package statement into the Simulator definition on line 71.

Understanding the Inkling

The sample inkling contains a number of features not present in other VP Link examples, these are present due to the complexity of the control problem. The below sections explain the inkling in more detail.

Why Multiple Concepts?

The Enzyme reactor problem has three distinct phases to it that all have different starting and end points. When confronted by a problem like this Bonsai needs to learn to do different actions for different states and it is often not effective or possible to program that learning into one concept. In this sample the three concepts are ReactorStartup, SterlisationStartup and Continuous to deal with the three distinct phases.

The action space for these concepts is split up into actions that are relevant for that concept. For Example the continuous action space uses variables that act on the reactor only.

#define the Reactor Continuous narrowed Action space
type ContinuousAction {
    # VP Link analog tag (0.0,2000.0), EU=l; Setpoint for Level in the Fermenter (normally 300)
    Reactor_Level_Setpoint_C: number<300.0 .. 1800.0>,
    # VP Link analog tag (0.0,200.0), Eu=?F;
    ReactorFoodInlet_PastLoop_TempSetpoint: number<0.0 .. 200.0>,
    # VP Link analog tag (0.0,100.0), Eu=%;
    Acid_Flow_Vlv: number<0.0 .. 100.0>,
    # VP Link analog tag (0.0,100.0), Eu=%;
    Base_Flow_Vlv: number<0.0 .. 100.0>,
    # VP Link analog tag (0.0,100.0),
    Air_Blower_Speed: number<0.0 .. 100.0>,
    # VP Link analog tag (0.0,130.0), EU=l/min;
    FlowSetPoint_C: number<0.0 .. 130.0>,
}

You will notice that different simulator packages need to be specified in order to use different action spaces.

simulator ContinuousSimulator(action: ContinuousAction, config: SimConfig): SimState {
    # Automatically launch the simulator with this
    # registered package name.
    package "EnzymeReactor"
}

Bonsai can of course only use one concept output, and in this particular example two of the concepts use some of the same actions (i.e. those related to the reactor). The final selector concept uses the known process state to decide which set of actions to use. This functions as a concept that both selects and combines the output. To learn more about concepts go to https://docs.microsoft.com/en-us/bonsai/inkling/keywords/concept

    concept CombineActions (input,  Continuous, ReactorStartup, SterilisationStartup) : SimAction{
        programmed    function (state: SimState,  c: ContinuousAction, r: ReactorStartupAction, Pt: SterilisationAction) {
                if state.Reactor_Startup_Mode == 1 {
            return {
                Reactor_Level_Setpoint_C: c.Reactor_Level_Setpoint_C,
                Reactor_Level_Setpoint_St: r.Reactor_Level_Setpoint_St,
                PastLoop_TempSetpoint: Pt.PastLoop_TempSetpoint,
                ReactorFoodInlet_PastLoop_TempSetpoint: r.ReactorFoodInlet_PastLoop_TempSetpoint,
                Acid_Flow_Vlv: r.Acid_Flow_Vlv,
                Base_Flow_Vlv: r.Base_Flow_Vlv,
                Air_Blower_Speed: r.Air_Blower_Speed,
                FlowSetPoint_C: c.FlowSetPoint_C,
                FlowSetPoint_St: r.FlowSetPoint_St
                        }
                }

        return {
            Reactor_Level_Setpoint_C: c.Reactor_Level_Setpoint_C,
            Reactor_Level_Setpoint_St: r.Reactor_Level_Setpoint_St,
            PastLoop_TempSetpoint: Pt.PastLoop_TempSetpoint,
            ReactorFoodInlet_PastLoop_TempSetpoint: c.ReactorFoodInlet_PastLoop_TempSetpoint,
            Acid_Flow_Vlv: c.Acid_Flow_Vlv,
            Base_Flow_Vlv: c.Base_Flow_Vlv,
            Air_Blower_Speed: c.Air_Blower_Speed,
            FlowSetPoint_C: c.FlowSetPoint_C,
            FlowSetPoint_St: r.FlowSetPoint_St
                }
            }
        }

Domain Randomisation

You will see that the VP Link training episodes use a VP Link initial conditions file (.icf file) for the first training lesson. This will set the starting conditions for each episode. Bonsai will be able to learn well from this starting point, however it may learn too well and be able to deal with situations that have slightly different starting conditions.

Too combat this domain randomisaiton is used. A range of starting points for certain variables is include alongside the initial conditions file. an initial conditions file is still utilised however variables also specified in the lesson will overwrite those in the .icf file at the start of each episode. Domain randomisation makes the brain more robust for real world deployment.

            lesson GoodStart {
                scenario {
                    _configNumber: 0,
                  # Each episode will use the same starting conditions
                    _initialConditions: "ReactorStartup.icf",
                    _timeStep: 2,  # VP Link model takes 2 second time steps (for the PIDs to work well)...
                    _reportEvery: 30,  # but reports to Bonsai after 30 seconds of sim time has elapsed.
                    # the below variables are added as domain randomsation to overwrite the conditions
                    # specified for those variables in the icf file
                    LvlFermenter: number<300.0 .. 500.0>,
                    Reactor_O2: number<16.5 .. 18.5>,
                    Reactor_Temp: number<96.0 .. 98.0>,
                    Reactor_pH: number<7.0 .. 7.5>,
                }
            }

Narrow the State Space

This is a classic way to improve brain training performance. Since the SimState includes all sorts of variables that do not pertain to the pasteurization step, it is advantageous to remove these from the state that is passed to the Sterilize concept. You can do this with a programmed concept. The programmed concept will take the large SimState and return a new state. This new state will only have the variables necessary for the relevant concept to do its job.

#define the narrowed state space for Pastuerisation
type PasteurizeState {
    Past_Startup_Mode: number<0 .. 1>,
    # VP Link digital tag (--,ReactorStartup),
    Temp_PastLoop_In: number<0.0 .. 300.0>[3],
    # VP Link analog tag (0.0,300.0), Eu=?F;
    Temp_PastLoop_OUT: number<0.0 .. 300.0>[3],
}
#This function will be used in the pasteurisation concept to reduce the overall state space
function ReducePasteurizeState(s: SimState) : PasteurizeState
{
    return {
        Past_Startup_Mode: s.Past_Startup_Mode,
        Temp_PastLoop_In: s.Temp_PastLoop_In,
        Temp_PastLoop_OUT: s.Temp_PastLoop_OUT
    }
}

In order for this narrowed state space to be used a programmed concept is created.

    concept StateForPasteurization(input): PasteurizeState {
        programmed ReducePasteurizeState
    }

Replacing the ‘input’ parameter with the name of the previous concept–in this case StateForPasteurization.
That allows the sterlisation concept to use the narrowed state space and improve trianing time and brain performance.

Reward Functions

You may have noticed that there are several functions in the inkling code. The VPLinkReward is a generalized function that has proven useful in a number of situations like this. The PasteurReward is a specific implmentation of the VPLinkReward that is applicable for Pasteurisation problem.

function PasteurReward( s: SimState)
{
    var good: number
    var bad: number
    good = VPLinkReward( 90, s.Temp_PastLoop_OUT[0], 3.0)
    bad = Math.Max(0, 10 * (s.Temp_PastLoop_OUT[0] - kTooHot))
    return good - bad
}

Reward functions can allow more tailored teaching of your brain. They also allow the combination of a number of different goals into one function. This can be seen with the design of the reactor reward functions. The pH, Oxygen % and Temperature are combined into one overall reward function that will teach the brain to learn the consequences of the actions on the different variables where one action (e.g. Air Blower Speed) will have an impact on more than one state variable (temperature and Oxygen concentration). The reactor reward functions are focused on measured variables that would otherwise be available to the brain in a deployed environment.

Reward functions do need to be carefully structured to maximise learning potential. e.g. earlier versions of this sample brain did not factor in the level of the reactor- this lead to bonsai learning to maximise the reward in Continuous mode by draining the tank! Hence a level component was added to the reward. For more see Writing Reward Functions Video

Improving the Inkling

How can this sample be improved? Here a few areas to consider:

Learning more Inkling concepts

There is a lot more to come with this example, as its complexity can exercise many aspects of bonsai and the Inkling language. Watch this space for more examples of how to train a complex brain to control other elements of this problem.
